Product Information - Medical / Pharmaceutical field／Grinding machine

  The design, development and manufacture of this Medical needle Grinding machine has started with the aim of creating a Grinding machine that anyone can handle as if it were an automatic machine.

　　It is possible to grind any blade surface shape with a bevel (blade surface) angle of 9-40 ° from the selection of single point (single-grinded needle) and double point (double-grinded needle) to support the grinding of a wide variety of injection needles. ..

    We also have a lineup of measures including punching and EMG processing so that sid hole processing can be performed in-line.

General: Fully automatic control of search conditions

Grinding chuck: 480 mm long

Corresponding gauge    １３G(φ２．２）～３２G（φ０．２３）

Needle length：　１２．５㎜～１２０．０㎜　（Option : ８０－１２０㎜）

Grinding angle　　：　９－４０°

Rotation slide amount Back cut maximum diameter：　±5㎜　＊Back cut Max　φ１．６５

Needle figure Single cut, lancet, semi lancet, back cut, 5 bevels

  (We will consider 6,7 bevels and other special shapes upon request.

Product group

Single grinding machine (1 grinder), double-headed needle grinding machine (2 or 1 grinder  is also possible)

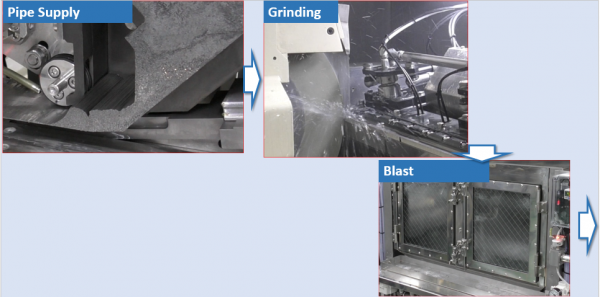

In-line option processing

AVF Side hole process

Needle tip electropolishing

EMG processing

Laser blasting
